Windshield Wiper Switch Woes

Discussion in 'Intermediate CJ-5/6/7/8' started by TB73CJ, Jul 2, 2022.

  1. Jul 2, 2022
    TB73CJ

    TB73CJ New Member

    South Carolina
    Joined:
    Oct 4, 2019
    Messages:
    15
    Hi all - I've got myself in a loop and not sure how to fix/attack... know juuust enough to be dangerous - so thank you for giving it to me straight.

    Problem: trying to fix wiper switch and get washer to work

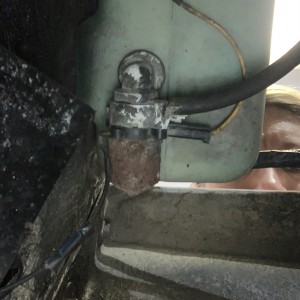

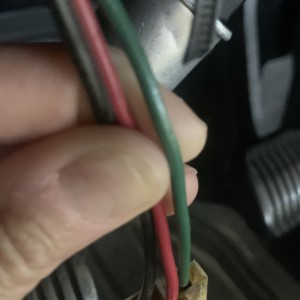

    Issue #1) Windshield wipers WORK but NOT washers. I realized my switch was broken - it wouldn't push in at all to turn on washers. (My washers have never worked since purchasing 3 years ago). Bought a new switch to see if the washer would work assuming it was a bad switch. Went to take faulty switch out and found the wiring undone - that also doesn't help the washer to work haha .....but the switch was broken regardless and needed replacing. Plugged in yellow washer wire to switch, 3 wire connector - green/red/black (sorry don't know the name/term) and white wire to power - a few hours later came back and jeep was humming loudly. (maybe bad washer pump?? - it looks pretty bad!) Assuming now I also need a new one of those.

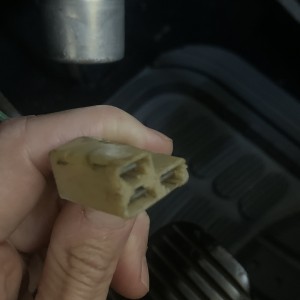

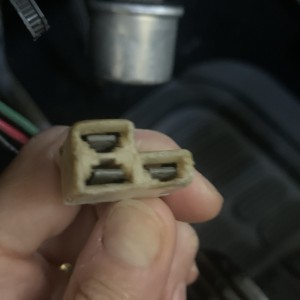

    Issue #2) Unplugged everything to stop the humming. To the new switch, I only plugged in three wire connector (what is the name of this??) and white wire to power, left yellow washer wire unplugged. Wipers turned on for a moment and then stopped. (They had been previously working even with the old switch - ugh- what was one problem is now three... seems like it's that way with Jeeps). Thinking a fuse has blown? Is it possible the 3 wire connector has gone bad? If so - is there a replacement pigtail of some kind? And where oh where is the fuse?

    Thoughts on what needs to be replaced? Help!

    Thank you for any assistance you can offer! Ill load some photos.

  2. Jul 2, 2022
    TB73CJ

    TB73CJ New Member

    South Carolina
    Joined:
    Oct 4, 2019
    Messages:
    15
    [​IMG][​IMG][​IMG][​IMG][​IMG]

    Last edited: Jul 2, 2022
  3. Jul 2, 2022
    timgr

    timgr We stand on the shoulders of giants. 2022 Sponsor 2021 Sponsor 2020 Sponsor

    Medford Mass USA
    Joined:
    Aug 10, 2003
    Messages:
    23,615
    Year, model, equipment? Should be in your sig, or post it in every post.

    Do you have the TSM for your year? There is a chapter that includes the wipers and the TSM shows the wiring diagram. Do you own and know how to use a multimeter? You need one to work on electrical. Some get by with a test light, but I think a multimeter is better.

    With your multimeter, refer to the wiring diagram and trace the circuit through. Make a photocopy and draw/color on it if you need to. You really need the Jeep in front of you to diagnose electrical problems. In nearly all cases, you can't tell what's going on without making measurements.

    Ol Fogie and GillaFunk like this.
  4. Jul 2, 2022
    Zoomer

    Zoomer eJeeper (walking) 2020 Sponsor

    Minnesota
    Joined:
    Sep 22, 2002
    Messages:
    1,036
    Fiberglass body?

  5. Jul 3, 2022
    sterlclan

    sterlclan Member 2022 Sponsor 2021 Sponsor

    exploring the...
    Joined:
    Feb 21, 2009
    Messages:
    3,721
    If it’s glass everything needs it’s own ground but that may not fix the bad wipers.

    Ol Fogie likes this.
  6. Jul 21, 2022
    TB73CJ

    TB73CJ New Member

    South Carolina
    Joined:
    Oct 4, 2019
    Messages:
    15

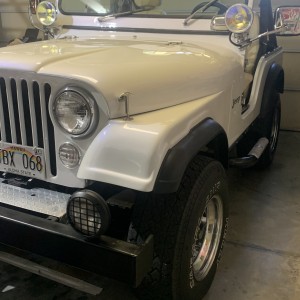

    Sorry- a '73 232/3.8, T14A
    fiberglass

    I do have the TSM and wiring diagram and can get a multimeter for sure. Just wondering if the humming would indicate something obvious to chase or if there was something that could be easily identified as the culprit (bad switch, etc.). Thanks!

  7. Jul 21, 2022
    timgr

    timgr We stand on the shoulders of giants. 2022 Sponsor 2021 Sponsor 2020 Sponsor

    Medford Mass USA
    Joined:
    Aug 10, 2003
    Messages:
    23,615
    I understand the sentiment. Maybe it's something that someone recognizes.

    I would test the components first. Testing of the wiper motor is in the TSM. I don't think the washer is complicated enough to be discussed - it's an electric motor, and runs, or not. Pretty sure generic replacements are available. Next I would measure voltages at the components, switch on and switch off. "Thou shalt measure voltages." Depending on what you find, follow the voltages (or lack of voltages) back from there.

    Ol Fogie likes this.
  8. Aug 2, 2022
    John Strenk

    John Strenk Member

    Shalersville, Ohio
    Joined:
    Nov 28, 2006
    Messages:
    111
    Usually the power wire is Red not White.

    Also, did you plug the power wire and the washer wire in the correct location?

    It's been a long time since I had the 3 wire wiper in my CJ and I don't remember if pushing in the washer button would start one sweep of the wipers.
    I am thinking that having the wires backwards might start the wiper to move when the washer button was pushed in and then when as the wipers tried tried to park themselves by keeping the wiper motor running, it will instead, run the washer pump until the wipers reach the park position which it can't since it's not getting any power. So the pump keeps running continuously.

    Of course if the key was OFF then everything should stop. But there is that White wire that should be Red...
