As If I Needed Another Project.... 68 Amx Pro Touring/track Car

Opening up the drain back holes.
Valley oil line under the intake manifold.
Drilled out oil main passage.
Bulltear tri-flow oil filter relocation and dry sump pickup.
Aviaid 6 qt road race oil pan with -12 remote oil pickup.
Dual remote oil filters to increase system capacity to 8 qts.
Bulltear timing cover with nickle plated oil pump housing interior.
Bulltear blueprinted HRC oil pump gear set.

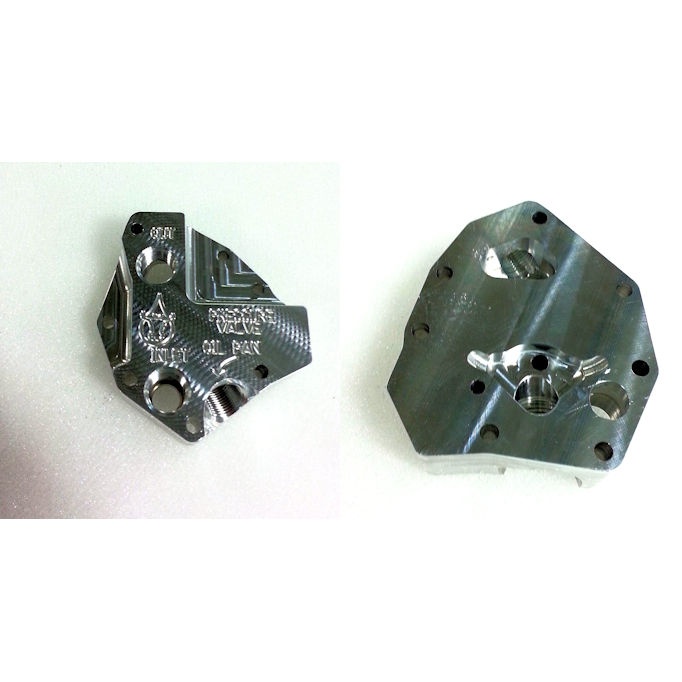

Below is a picture of the oil filter relocation/dry sump pickup plate.



Another piece of the puzzle showed up today!
The Aviaid T/A road race oil pan with external pickup. The only thing better than this would be a full dry sump system.
Aviaid made the original pans for the Trans Am champion Penske Javelins driven by Mark Donohue.




AN-12 external oil pump feed line.





Windage tray to prevent spinning oil with the 4" stroke crank.





The pickup box is equipped with 3 trap doors to allow oil in and prevent starvation on high gforce corners.



Holy crap nice piece dude!



After over a year of waiting the headers and exhaust system came in!
Headers are of course dogleg port, 1-7/8", 304 stainless and made by American Racing Headers. The mufflers are their proprietary design, "pure thunder series", I am excited to hear them!





The merge collectors have cones to help with back drafting.



:49 holy smokes..
