44 Floater

Discussion in 'Early CJ5 and CJ6 Tech' started by timsresort, May 18, 2024.

  1. May 18, 2024
    timsresort

    timsresort Active Member 2023 Sponsor 2022 Sponsor

    South Lake Tahoe CA
    Joined:
    Jan 22, 2014
    Messages:
    1,490

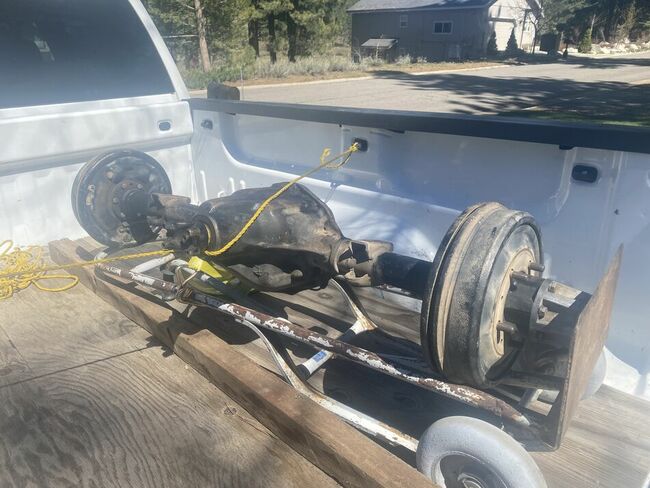

    Picked up a nice little treasure. Dana 44 offset, 11"brakes, full floating axles with locking hubs. The price was right, so I dragged it home.
    [​IMG]

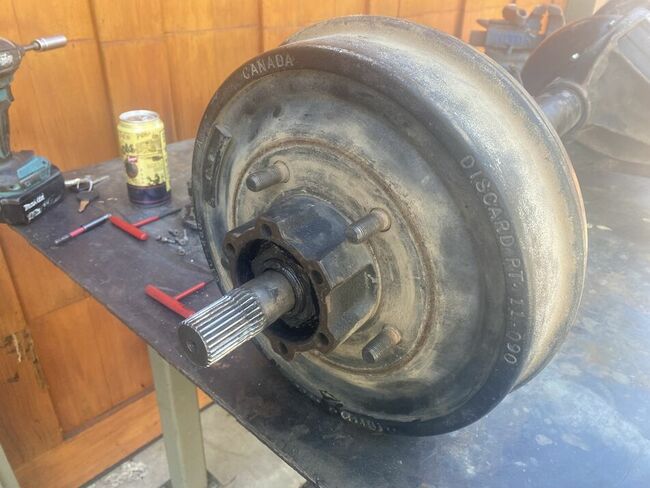

    Popped the Warn hubs off to reveal 27 spline outer, 19 spline inner axles.
    [​IMG]

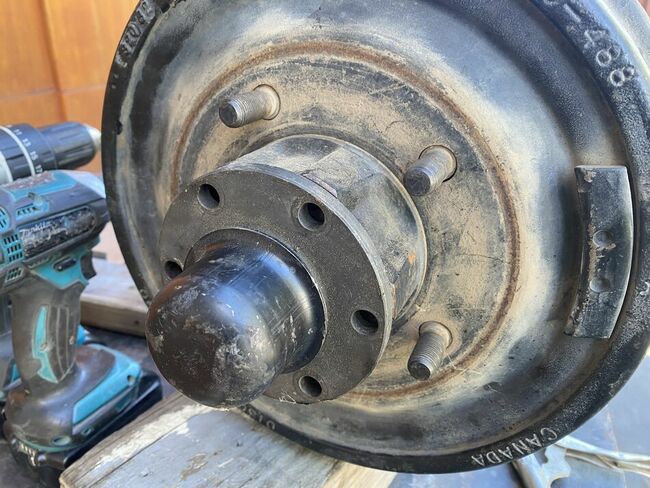

    If I use this on my CJ5, I will probably forego the locking hubs, and go with these 27 spline drive flanges I found in my hub box.
    [​IMG]

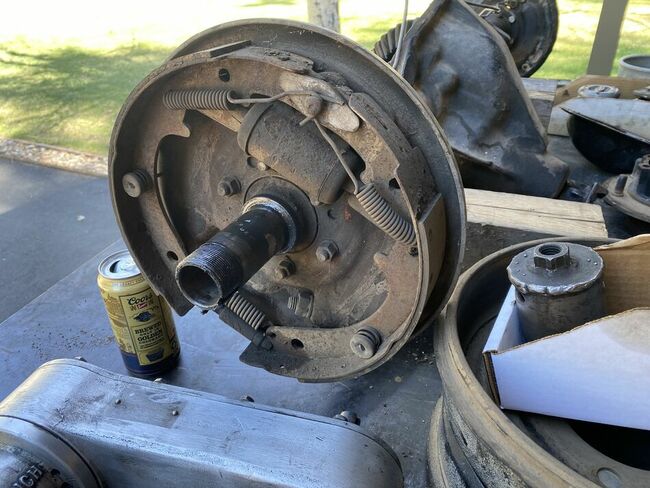

    Pulled the drums and D27 hubs off to reveal bored out D30 spindles, and 11" manual adjusting brakes.
    [​IMG]
    Cover off to find a Detroit Locker with 5.38 ring and pinion. No teeth missing, I can use this, with a ratio change.
    [​IMG]

    Last edited: May 18, 2024
    blalp!, jeepstar, Norcal69 and 13 others like this.
  2. May 18, 2024
    Ol Fogie

    Ol Fogie 74 cj5 304, 1943 mb

    Southern...
    Joined:
    Nov 24, 2019
    Messages:
    1,872
    Really nice find. Congratulations.
    Was wondering how much machining was required to convert the dana 30 spindles? if you know.

    dozerjim and timsresort like this.
  3. May 18, 2024
    timsresort

    timsresort Active Member 2023 Sponsor 2022 Sponsor

    South Lake Tahoe CA
    Joined:
    Jan 22, 2014
    Messages:
    1,490
    I'll mic the spindle tomorrow, but I think it's in the 10 thou area, to get 27x19 spline axles through.

    dozerjim and Ol Fogie like this.
  4. May 18, 2024
    Ol Fogie

    Ol Fogie 74 cj5 304, 1943 mb

    Southern...
    Joined:
    Nov 24, 2019
    Messages:
    1,872
    Thankyou, does the shoulder of the spindle need machined as well to fit inside where the wheel bearing once was in the axle housing? Apologies for all the questions. I am considering converting to an off set dana 44 that has the old two piece axles to a FF. Could not find an off set 44 with flanged axles any where.

    dozerjim likes this.
  5. May 18, 2024
    timsresort

    timsresort Active Member 2023 Sponsor 2022 Sponsor

    South Lake Tahoe CA
    Joined:
    Jan 22, 2014
    Messages:
    1,490
    Yes it does, the shoulder gets turned down enough to fit in the axle tube. If you have the option, D30 spindles have a little more meat on that shoulder, as compared to D27, but they both work fine.

    dozerjim and Ol Fogie like this.
  6. May 18, 2024
    Jay's WWII Jeeps

    Jay's WWII Jeeps Member

    Napa CA
    Joined:
    Mar 14, 2018
    Messages:
    176
  7. May 18, 2024
    Ol Fogie

    Ol Fogie 74 cj5 304, 1943 mb

    Southern...
    Joined:
    Nov 24, 2019
    Messages:
    1,872
    dozerjim likes this.
  8. May 18, 2024
    Jw60

    Jw60 I don't do metric 2024 Sponsor 2023 Sponsor 2022 Sponsor

    Trails end,...
    Joined:
    Apr 8, 2008
    Messages:
    5,009
    Ol Fogie, dozerjim and timsresort like this.
  9. May 18, 2024
    timsresort

    timsresort Active Member 2023 Sponsor 2022 Sponsor

    South Lake Tahoe CA
    Joined:
    Jan 22, 2014
    Messages:
    1,490
    Thanks Jay, I think I have read that before, and I believe it led to expensive custom spindles being made to accept 30 spline shafts. A few thoughts, I'm not sure why all the desire for 30 spline axles. For a V6 jeep, 19 spline is fine with up to 33 " tires. Then you can use the lightly bored D30 spindle (cheap, plentiful, and easy), and Moser or Dutchman 1-piece or 2-piece shafts. Also, one can use standard D44 front inner axle seals, out on the end, to seal the gear oil in. And just pack the wheel bearings like a front.

    Ol Fogie and dozerjim like this.
  10. May 18, 2024
    Jw60

    Jw60 I don't do metric 2024 Sponsor 2023 Sponsor 2022 Sponsor

    Trails end,...
    Joined:
    Apr 8, 2008
    Messages:
    5,009
    It's to run 30 spline selectable lockers with flanged shafts. I've wheeled with a handful of those jeeps.

    Ol Fogie, dozerjim and timsresort like this.
  11. May 18, 2024
    Jw60

    Jw60 I don't do metric 2024 Sponsor 2023 Sponsor 2022 Sponsor

    Trails end,...
    Joined:
    Apr 8, 2008
    Messages:
    5,009
    The index needs turned down to 2.875 for tapered axle housings and I *think* the major diameter for the 19 spline is 1.313".

    Ol Fogie, dozerjim and timsresort like this.
  12. May 18, 2024
    timsresort

    timsresort Active Member 2023 Sponsor 2022 Sponsor

    South Lake Tahoe CA
    Joined:
    Jan 22, 2014
    Messages:
    1,490
    Oh, yeah, the selectable locker. I forgot about that. Guess you can't get a 19 spline ARB.

    Ol Fogie, dozerjim and Jw60 like this.
  13. May 19, 2024
    Jay's WWII Jeeps

    Jay's WWII Jeeps Member

    Napa CA
    Joined:
    Mar 14, 2018
    Messages:
    176
    Now with the Roxor on the market you can get 19 spline selectable lockers.

    Fireball, Ol Fogie and dozerjim like this.
  14. May 19, 2024
    Jw60

    Jw60 I don't do metric 2024 Sponsor 2023 Sponsor 2022 Sponsor

    Trails end,...
    Joined:
    Apr 8, 2008
    Messages:
    5,009
    Not a direct swap... Howard has a thread on it.

    dozerjim likes this.
  15. May 19, 2024
    timsresort

    timsresort Active Member 2023 Sponsor 2022 Sponsor

    South Lake Tahoe CA
    Joined:
    Jan 22, 2014
    Messages:
    1,490
    But then you have all that extra stuff to go wrong, air lines, compressors, solenoids, o-rings, switches, fuses. Seen it way too much on the trail.

    Fireball, Jw60 and Ol Fogie like this.
  16. May 20, 2024
    timsresort

    timsresort Active Member 2023 Sponsor 2022 Sponsor

    South Lake Tahoe CA
    Joined:
    Jan 22, 2014
    Messages:
    1,490
    The shafts are 1.250 and the spindles are 1.260, so .010 comes out of the spindle to pass the fattest part through, then there is a narrower section that will ride inside the spindle.
    [​IMG]

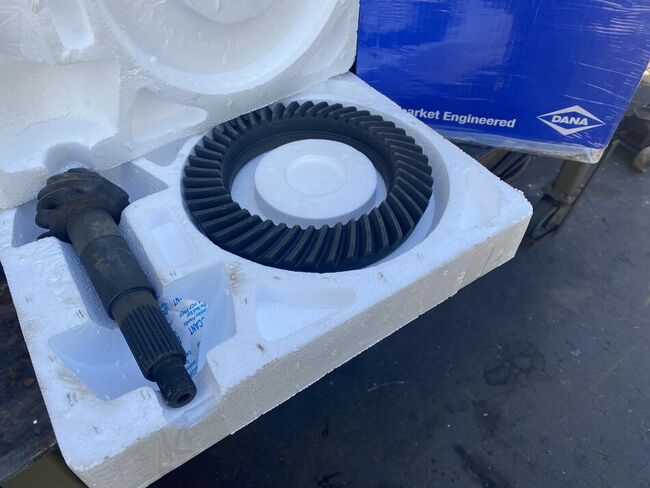

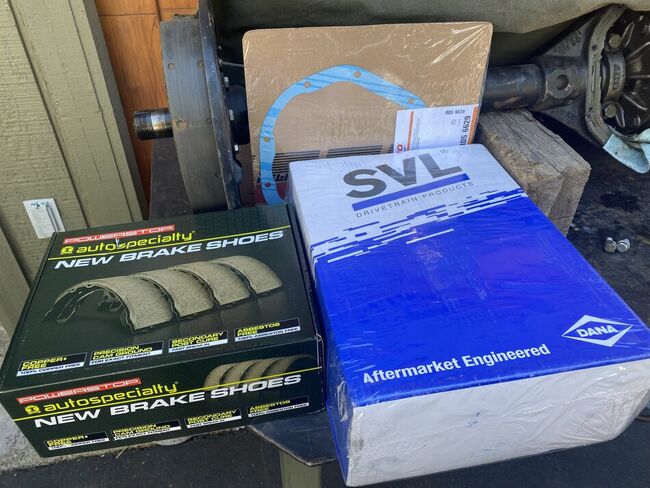

    I'm going to put this in my CJ5 (more on that jeep later), so I picked up a Dana 4.88 ring and pinion, brake shoes, wheel cylinders, gasket, minor set up kit, all from Rockauto.
    [​IMG]
    I have to say, Rockauto had the best deal, especially for a Dana set ($153). I had considered keeping the 5.38's and changing the front to match, and I ran an ad looking for a M27 5.38. I had no luck, and this makes more sense anyway, to keep it at 4.88, and the axle is already out and on the table. Much easier.
    [​IMG]

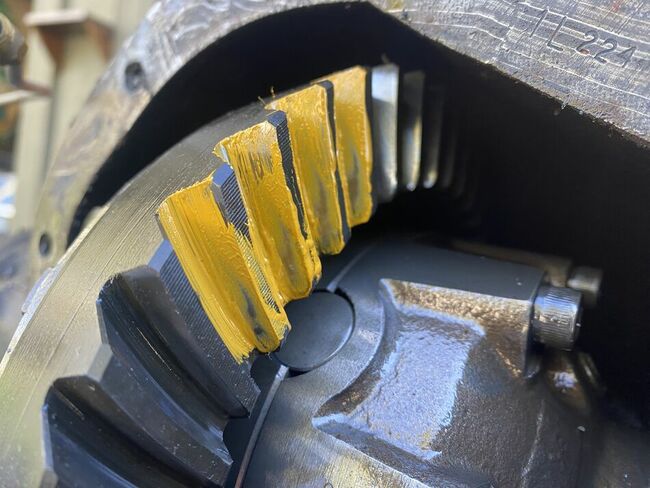

    I decided to run a pattern on the old set to see where it rides, and may help with shim stack selection on the new set.
    Drive side:
    [​IMG]
    Coast side:
    [​IMG]

  17. May 20, 2024
    Ol Fogie

    Ol Fogie 74 cj5 304, 1943 mb

    Southern...
    Joined:
    Nov 24, 2019
    Messages:
    1,872
    This is going to be a good thread! (y),I am learning a lot. I appreciate your time posting. :watch:.

    timsresort and vtxtasy like this.
  18. May 21, 2024
    Ol Fogie

    Ol Fogie 74 cj5 304, 1943 mb

    Southern...
    Joined:
    Nov 24, 2019
    Messages:
    1,872
    It would seem to me that if the axle shaft is 1.250 on the outer splined end you could just install the axle into the housing first then install the 1.260 ID. spindle over the axle end and bolt up. without having to bore .010 out of the spindle. I am guessing the .005 radial clearance that provides would not be enough? So by boring out .010 extra you now have .010 total radial clearance for the axle, that would be sufficient Am I correct? Or am I missing something?

    vtxtasy likes this.
  19. May 21, 2024
    duffer

    duffer Rodent Power

    Bozeman, MT
    Joined:
    Sep 17, 2009
    Messages:
    4,550
    I ran that exact arrangement in my 3B for decades with both a Powr-Loc and Detroit and both 11" drums and discs. Zero problems behind both 350 and 381 sbc's. You do need to pay attention to the flange bolting fasteners and that has been previously covered. I much prefer ARP's 8740 fasteners for this rather than studs.
    [​IMG]

    My current 3B 30 spline floater, as per that 2A Page thread with Jeff Petrowich's 4340 large bore spindles on a 1960 FC 150 housing:
    [​IMG]

  20. May 21, 2024
    timsresort

    timsresort Active Member 2023 Sponsor 2022 Sponsor

    South Lake Tahoe CA
    Joined:
    Jan 22, 2014
    Messages:
    1,490
    Yes, the spindle could be installed over the 1.220 outer spline. But what a PIA if you broke one and had to disassemble the whole thing to get the piece out. The 1.250 on the shaft only happens at the outer seal surface, just inside the tube. And to remind, a stock spindle is 1.250, the bored is 1.260, and yes, .005 radial clearance is enough in my experience, since once it's in, the shaft is smaller inside the spindle area.

    Ol Fogie and vtxtasy like this.
